Excellence in Heavy-Duty Anti-Corrosion: A Comprehensive Analysis of the Corrosion Protection Project for a 300,000 m³ Large-Scale Oil Storage Tank Farm
Published on: March 16, 2026 | Reading Time: 8 minutes
In the petrochemical industry, the corrosion protection lifespan of storage tanks is directly linked to operational safety and cost efficiency. When three major challenges—corrosive media, structural complexity, and large-scale construction—converge, how can the long-term reliability of an anti-corrosion system be ensured?
This article presents a comprehensive case study of Huaren Coatings’ successful implementation of a complete internal and external corrosion protection solution for a 300,000 m³ oil storage tank farm (10 units of 30,000 m³ vertical tanks) at a large-scale petroleum storage facility. Covering solution design, material estimation, and construction control, it offers a replicable technical benchmark for the industry.
一、 Project Background: When a 300,000 m³ Tank Farm Faces Multiple Corrosion Challenges

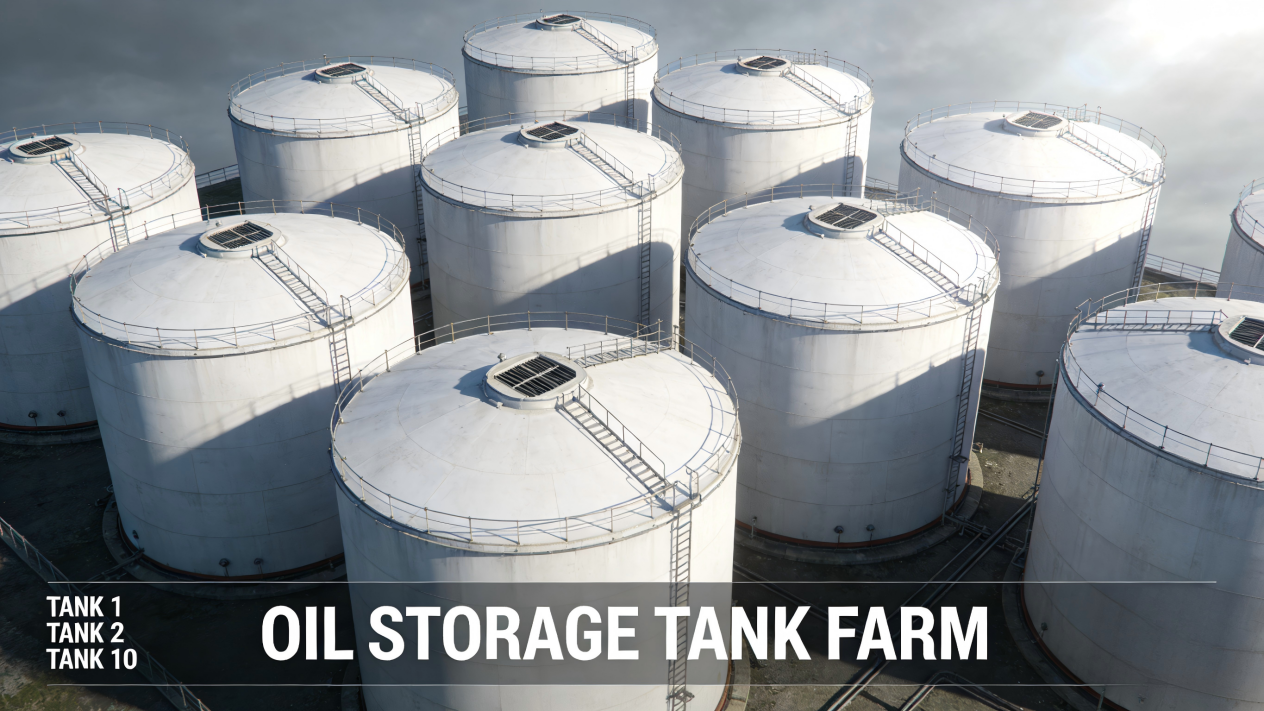

The planned 300,000 m³ storage tank farm at this petroleum storage facility is designed for centralized storage of refined oil and other high-risk media. With 10 units of 30,000 m³ vertical storage tanks arranged side by side, the project places exceptionally high demands on the anti-corrosion system:

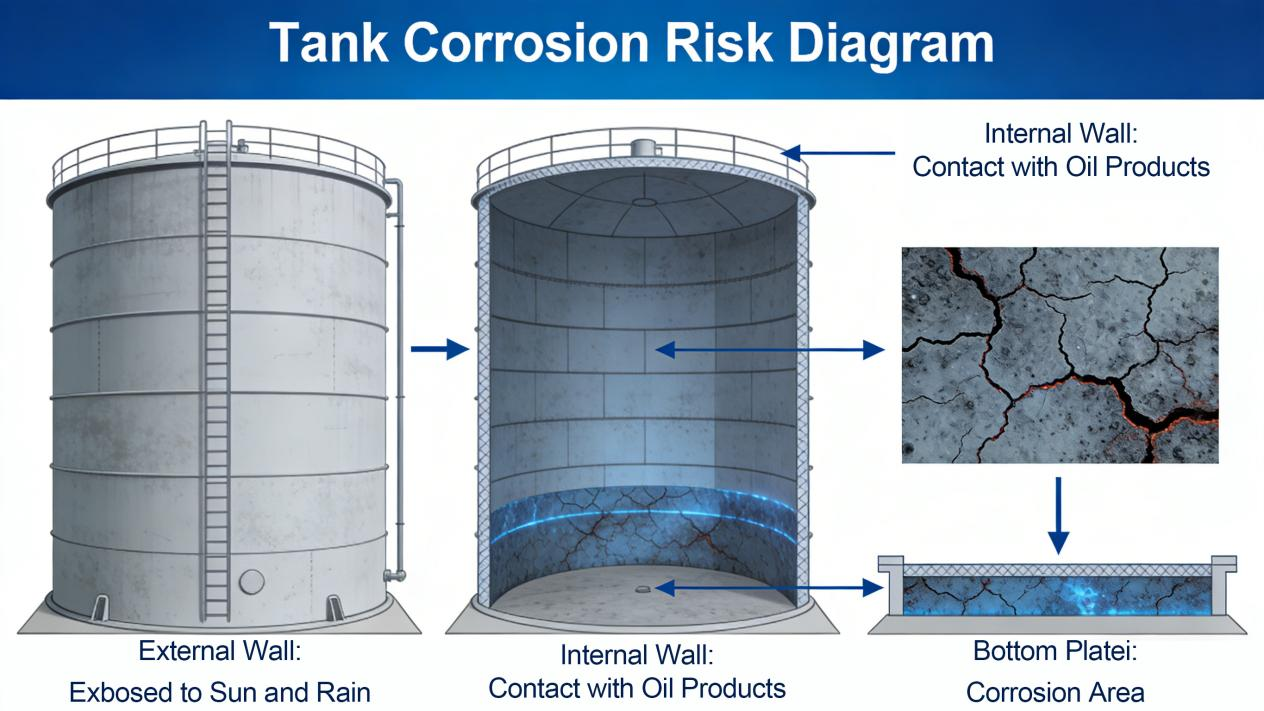

External Environmental Corrosion:Long-term exposure to oxygen, moisture, salt, and ultraviolet radiation in the atmosphere can easily lead to rusting and aging of the tank exterior, roof, and steel structures.
Internal Media Corrosion:Refined oil itself has certain corrosive properties, while also imposing strict requirements for anti-static and explosion-proof performance on the inner tank walls. Static electricity accumulation remains the primary safety risk in refined oil storage.
Protection of Critical Areas: Key sections such as the external bottom plates and welded joints feature complex structures and present significant construction challenges, making them critical focus areas in corrosion protection.
After a comprehensive evaluation of coating quality, construction efficiency, and long-term maintenance costs, the project owner ultimately selected Huaren Coatings as the partner. The decision was straightforward: what they needed was not just coatings, but a complete, scalable anti-corrosion solution.
二、 Customized Solution: A Standardized Anti-Corrosion System Based on Single-Tank Units
In response to the 10 storage tanks of identical specifications, Huaren’s technical team adopted a strategy of “standardizing by single tank and replicating at scale.”A tailored anti-corrosion system was first developed for one 30,000 m³ tank as a model unit, and then consistently applied across the entire tank farm. This approach ensured uniform quality while significantly improving construction efficiency.
Main Parameters of the Storage Tanks
Item | Value |
Total Project Scale | 300,000 m³ (10 units of 30,000 m³ vertical storage tanks) |
Anti-Corrosion Area per Tank | Approx. 18,380 m² |
Total Anti-Corrosion Area (Tank Farm) | Approx. 183,800 m² |

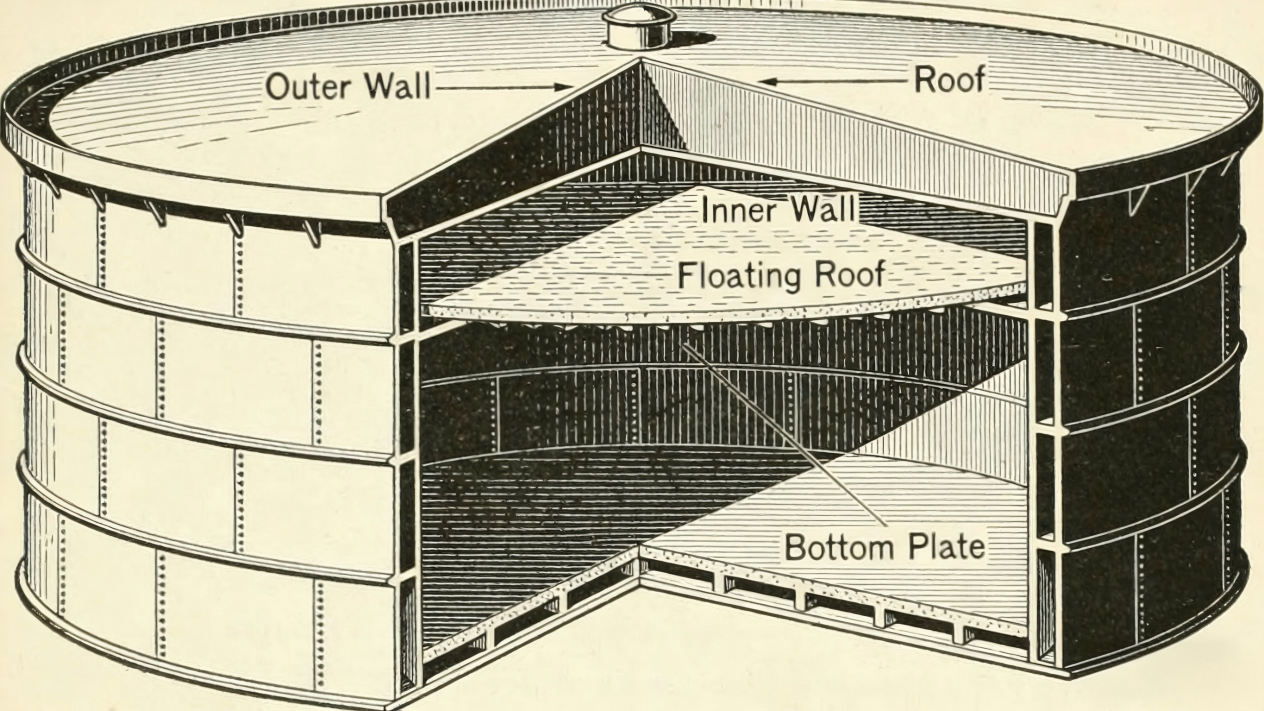

Key Anti-Corrosion Areas | External tank walls and accessories, bottom plate exterior, internal walls, and floating roof |
The following solutions are calculated based on a single 30,000 m³ storage tank. The total material consumption for the entire tank farm equals the per-tank quantity multiplied by 10.In actual construction, an additional 30%–50% allowance should be considered to account for application loss.
（一）External Surface Anti-Corrosion System for Storage Tanks
1. Tank Exterior Walls, Roof, Accessories, and Stairway Platforms
A three-coat composite anti-corrosion system is adopted to withstand complex outdoor environmental conditions:
Coating Layer | Product Name | Dry Film Thickness | Theoretical Coverage | Theoretical Consumption per Tank |
Primer | Zinc-Rich Epoxy Primer | ≥80 μm | Approx. 7.47 m²/L (at 75 μm DFT) | 592 L |
Intermediate Coat | Epoxy MIO Intermediate Paint | ≥160 μm | Approx. 3.79 m²/L (at 100 μm DFT) | 2,317 L |
Topcoat | Acrylic Polyurethane Topcoat | ≥80 μm | Approx. 7.6 m²/L (at 80 μm DFT) | 724 L |
Applicable Area: Approx. 5,500
2. External Bottom Plate of Storage Tank (Differentiated Protection)
The bottom plate exterior is designed separately for welded and non-welded areas, precisely addressing their distinct protection requirements:
Area | Product Name | Dry Film Thickness | Theoretical Consumption per Tank | Remarks |
Welded Areas | Weldable Inorganic Zinc Silicate Primer | ≥70 μm | 210 L | Suitable for 100 mm-wide welded areas (approx. 180 m²) |
Non-Welded Areas | High-Solids Epoxy Coating | ≥300 μm | 533 L | Suitable for non-welded areas (approx. 1,600 m²) |
（二） Internal Wall Anti-Corrosion System for Storage Tanks
Refined oil storage imposes two strict requirements on internal coatings: oil resistance and anti-static explosion protection. Huaren adopts a conventional internal anti-corrosion solution for refined oil tanks (Solution 1), with materials and quantities for each section as follows:
Section | Product Name | Dry Film Thickness | Theoretical Coverage | Theoretical Consumption per Tank | Applicable Area |
Inner surface of tank roof, inner walls above liquid level, upper surface of carbon steel floating roof | High-Solids Epoxy Coating | ≥250 μm | Approx. 3.2 m²/L | 1,219 L | Approx. 3,900 m² |
Tank bottom and inner walls in contact with oil | Non-Carbon Light-Colored Epoxy Anti-Static Coating | ≥300 μm | Approx. 4.8 m²/L (at 200 μm DFT) | 2,750 L | Approx. 4,400 m² |
Inner surface and components of carbon steel floating roof | Waterborne Epoxy Coating | ≥200 μm | Approx. 5.0 m²/L | 280 L | Approx. 1,400 m² |
Lower surface, side walls, and components of carbon steel floating roof | Non-Carbon Light-Colored Epoxy Anti-Static Coating | ≥250 μm | Approx. 4.0 m²/L | 1,125 L | Approx. 1,800 m² |
（三） Summary of Coating Consumption for a Single Tank and the Entire Tank Farm
Product Name | Applicable Area | Theoretical Consumption per Tank (L) | Total Consumption for Tank Farm (10 Tanks) (L) |
Zinc-Rich Epoxy Primer | Tank exterior walls, roof, accessories, stairway platforms | 592 | 5,920 |
Epoxy MIO Intermediate Paint | Tank exterior walls, roof, accessories, stairway platforms | 2,317 | 23,170 |
Acrylic Polyurethane Topcoat | Tank exterior walls, roof, accessories, stairway platforms | 724 | 7,240 |
Weldable Inorganic Zinc Silicate Primer | Bottom plate exterior – welded areas | 210 | 2,100 |
High-Solids Epoxy Coating | Bottom plate exterior – non-welded areas | 533 | 5,330 |
High-Solids Epoxy Coating | Tank roof interior, inner walls above liquid level, floating roof upper surface | 1,219 | 12,190 |
Non-Carbon Light-Colored Epoxy Anti-Static Coating | Tank bottom, inner walls in contact with oil | 2,750 | 27,500 |
Waterborne Epoxy Coating | Floating roof inner surface and components | 280 | 2,800 |
Non-Carbon Light-Colored Epoxy Anti-Static Coating | Floating roof lower surface, side walls, and components | 1,125 | 11,250 |
Total | 9,740 | 97,400 |
Note: The above figures represent theoretical consumption. In actual construction, an additional 30%–50% allowance should be included to account for application loss.
三、 Standardized Construction: The Key Leap from “Good Coatings” to “Effective Protective Layers”

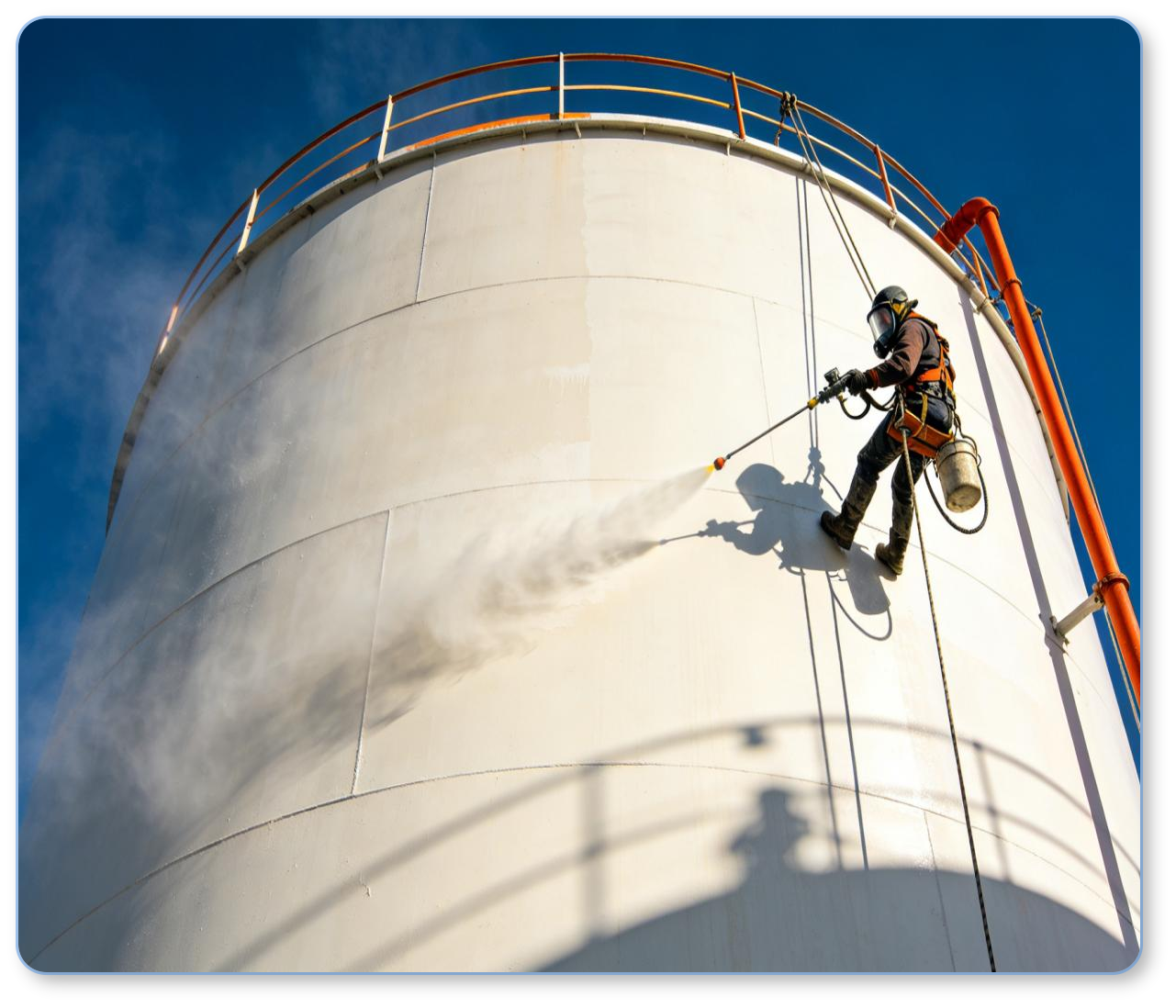

Even the best coatings can fail if applied improperly. The Huaren project team implemented a standardized construction process to ensure each layer delivers optimal performance:
1. Surface Preparation: The Foundation of Corrosion Protection
All surfaces to be coated underwent sandblasting to achieve Sa2.5 cleanliness — meaning surfaces are clean, dry, free of oil and rust scale — providing the ideal foundation for coating adhesion.
2. Layered Coating: Strict Control of Each Step
Application followed the strict sequence of primer → intermediate coat → topcoat, ensuring each layer is fully cured before the next is applied. This approach fundamentally prevents delamination, cracking, and other coating failures.
3. Focused Control on Critical Procedures
Internal Anti-Static Coating: The thickness of the anti-static coating on inner walls is closely monitored to meet the design requirement of ≥300 μm, ensuring reliable anti-static performance and eliminating safety risks.
Differentiated Bottom Plate Coating: Coatings for welded and non-welded areas are strictly distinguished, precisely matching the protection needs of each section.
4. Curing & Inspection: Data-Driven Assurance
After coating application, a minimum of 7 days of ambient curing is carried out to ensure full film curing. This is followed by comprehensive quality inspections:
1.Dry film thickness (DFT) measurement (multi-point testing with focus on minimum values)
2.Adhesion testing (cross-cut method / pull-off method)
3.Visual inspection
4.Internal surface anti-static performance testing
All parameters meet or exceed the specified industry standards.
四、Project Outcomes: The Value Behind a 15-Year Design Life
The successful implementation of the 300,000 m³ tank farm anti-corrosion project has delivered tangible value to the client:
Long-Term Protection, Cost Reduction & Efficiency Improvement
The complete heavy-duty anti-corrosion system provides a design service life of over 15 years for the storage tanks, significantly reducing maintenance frequency and associated costs. For the client, this translates into a substantial reduction in total lifecycle costs.
Safety & Compliance, Eliminating Risks
The standardized application of anti-static coatings on the internal surfaces effectively eliminates the risk of static charge accumulation and fully complies with explosion-proof standards for refined oil storage. In flammable and explosive environments, this is a non-negotiable safety requirement.
Standardized Execution, Consistent Quality
A tank-based standardized approach enabled the batch construction of 10 storage tanks. With a unified product system, consistent application procedures, and standardized inspection processes, the anti-corrosion quality of each tank is ensured to be fully consistent.
Client Feedback
“Huaren not only provided high-quality industrial anti-corrosion coatings, but also efficiently completed the anti-corrosion construction of a large-scale tank farm through professional technical support, large-scale execution capability, and rigorous project management. They are a reliable long-term partner in heavy-duty anti-corrosion.”
五、 Future Collaboration: Building a Strong Anti-Corrosion Barrier for Global Partners
The successful delivery of this 300,000 m³ large-scale oil storage tank anti-corrosion project demonstrates Huaren’s comprehensive capabilities in large-scale industrial heavy-duty corrosion protection. However, we fully understand that different partners have different needs:
1.Coating distributors require high-quality, stable, and cost-effective products to expand their markets
2.Engineering contractors and applicators need standardized solutions, accurate material consumption calculations, and professional technical support to improve efficiency and ensure project quality
3.Heavy equipment manufacturers demand long-lasting and reliable corrosion protection to extend equipment service life and enhance product competitiveness
Based on this benchmark project, we extend a sincere invitation to global partners:
Leveraging Huaren’s strong technical expertise, standardized product systems, scalable service capabilities, and comprehensive after-sales support, we provide:
1. Customized anti-corrosion solutions – Tailored to your specific operating conditions
2. Accurate material consumption estimation – Ensuring transparent costs and precise quotations
3.Professional technical support – From solution design to application and final inspection
4.Reliable product supply – Securing smooth project execution
Choosing Huaren means choosing professionalism, reliability, and a win-win partnership.
