COMPOSITION
The inorganic zinc silicate primer is formulated with epoxy resin, phosphorothalein powder, and various additives, using polyurethane as the curing agent. It should be mixed according to the specified ratio and applied within the designated time after thorough blending. The coating features excellent drying properties, strong adhesion, and superior mechanical performance.
FEATURE：
The inorganic zinc primer forms a hard coating that provides electrochemical protection, resists high temperatures without affecting welding performance, dries quickly, and offers excellent adhesion and mechanical strength.
USES:
Apply inorganic zinc silicate primer to ships, petroleum, electric power, bridges, sewage, steel structure factory buildings, mechanical equipment, and locomotive container equipment facilities for anti-corrosion protection.

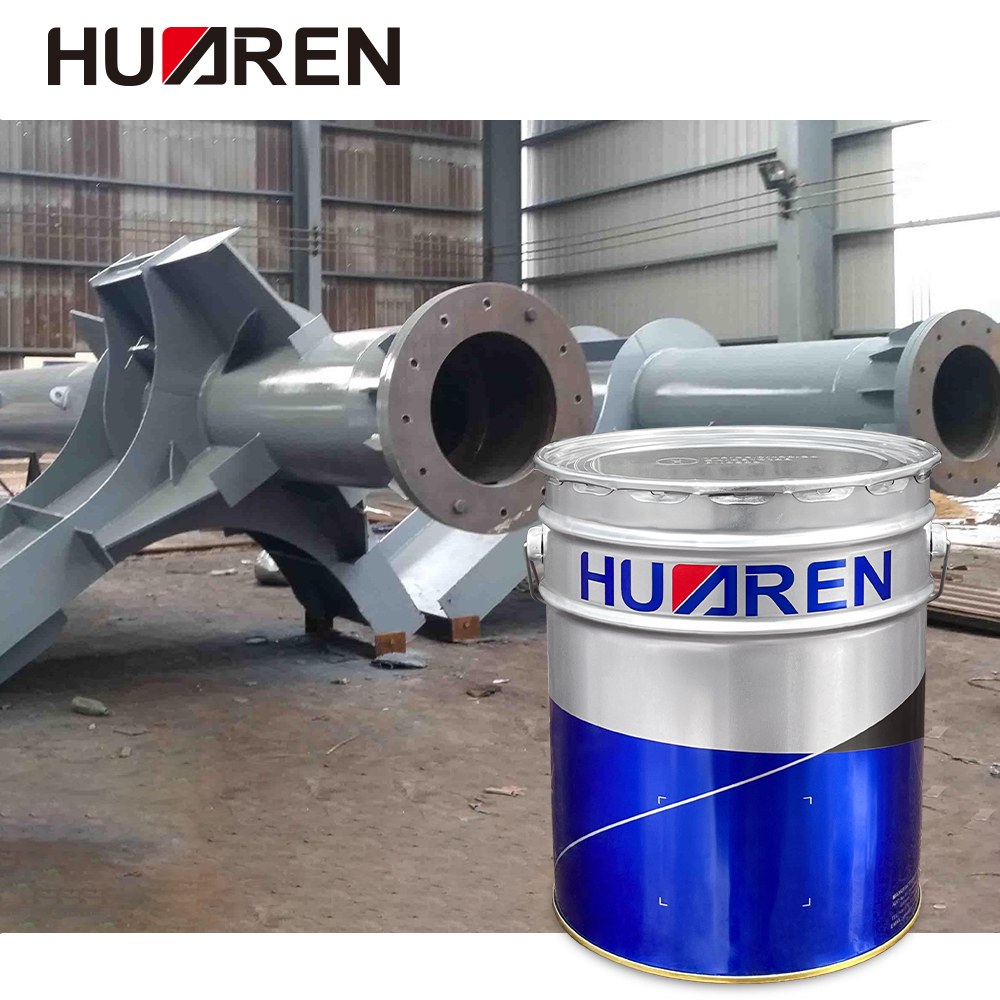

H06-12 INORGANIC ZINC-SILICATE PRIMER Tethnical Parameter
| ITEM | NORM | |
| Packaging specification | Paint: 20KG | Curing agent: 2KG |
| Appearance | Liquid | |
| Film color and appearance | Gray, Matte | |
| Dry time,h,(25℃) | Surface dry h≤4 | |
| Hard dry h≤24 | ||
| Adhesive force,grade≤ | 2 | |
| Flexible,mm≤ | 1 | |
| Impact force,kg.c㎡ | 50 | |
| Salt fog resistance test,96h | No change | |
| Salt water resistance test (soak In 3% NaCl salt water for 96h) | No change | |
| Acid resistance (soak in 3% H₂SO₄ liquid for 48h) | No change | |
| Alkali resistance (soak in 5% NaOH liquid for 48h) | No change | |
Physical Parameters and Construct Specifications for Reference
| Mixing ratio | Paint : curing agent=10:1 |
| Life time after mix | 2h |
| Density after mix | About 1.6kg/L |
| Flashing point | ≤60° |
| Each film thickness | Dry film 40um,wet film 60um |
| Theoretical coverage | 0.3kg/m |
| Advise coating layer | 2 Coats |
| Re-coat interval | 4h ,exceed 7days should be processed by polishing |
| Surface treatment | The surface of the base must be clean and dry , without loose paint, grease and other dirt , sandblasting or grinding to Sa2 grade. |
| Construction environment | Construction temperature is 5~40 ℃ Air relative humidity less than 85% . The substrate surface humidity is 3℃ higher than the dew point Avoid construction in the rain, snow, fog weather. |
| Coating method | Brush,Spray, Roller coating |
| Storage life | 1.5 Year |
Certificate
Guangdong Huaren Chemical Industry Co., Ltd. products are ROHS certified, guaranteeing compliance with European standards, and have obtained ISO 9001:2015 certification, ensuring consistently high-quality supply to our customers.
Service Advantages
Customization
Customized various performance coatings,according to the use situation,Design appropriate process and coating application plan.
Large-scale production capacity
The annual output of 30000 tons of coating and 20000 tons of resin has a large production baseof 20000 square meters.
Construction and technical services
Professional construction team, providing design, construction and technical guidance.
Timely delivery service
The subsidiary company of dangerous goods transportation company owned by the company can timely distribute large-scale key project projects.
