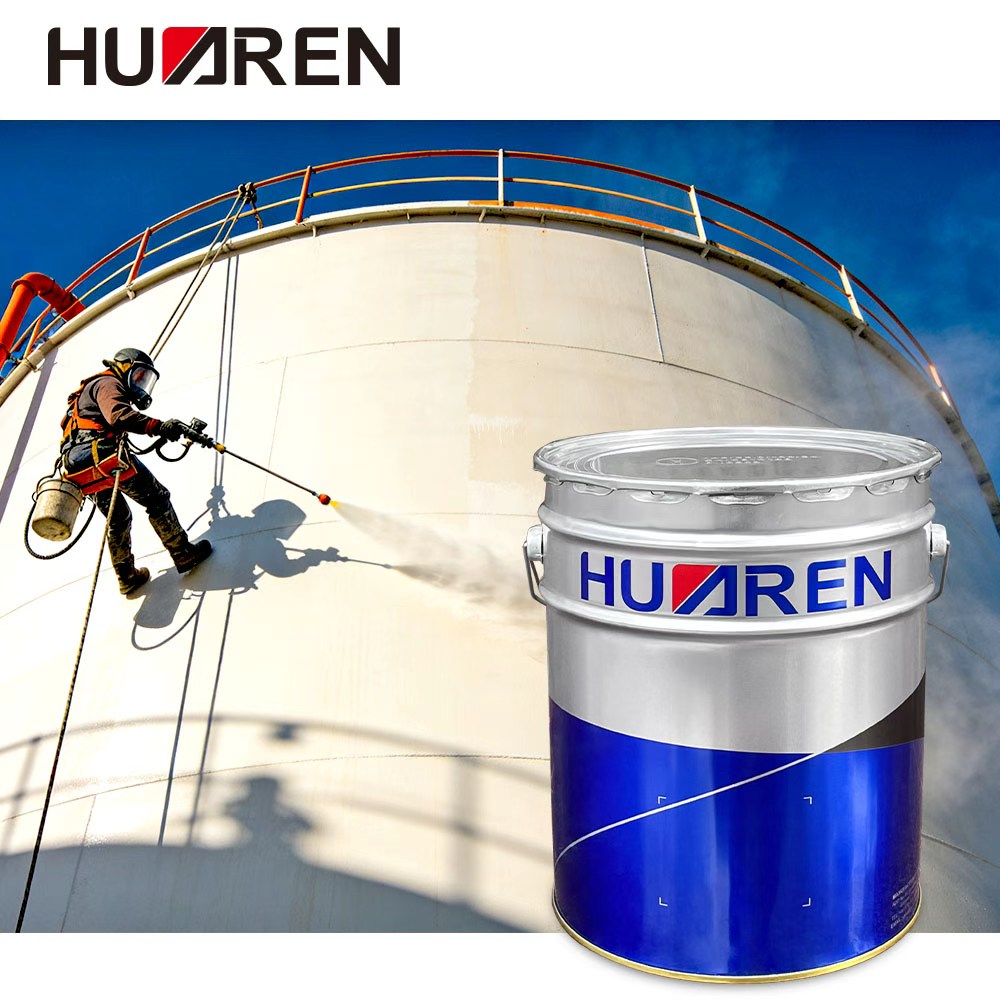

H04-3000A-90 AVIATION KEROSENE ELECTROSTATIC CONDUCTIVE EPOXY PAINT (5:1) is a kerosene-based electrostatic conductive epoxy paint. It is a two-component system with a 5:1 ratio. It is a protective coating that prevents static electricity accumulation in fuel and resists kerosene corrosion on metal surfaces such as aircraft fuel systems.
This aircraft anti static epoxy paint for aviation coal is composed of epoxy resin, conductive mica powder, conductive fiber, conductive auxiliaries, anti-rust pigment, solvent, and curing agent to form a two-component coating. It does not contain zinc, copper, cadmium, or other harmful components.
FEATURE：
Construction can be carried out directly on the old coating without sandblasting; however, severe rust should be polished first. This anti static aircraft epoxy paint offers strong adhesion, corrosion resistance, and convenient application, reducing surface treatment time and cost, making it ideal for repair and renovation projects.
USES:
Aircraft anti static epoxy paint is suitable for factory equipment, pipelines, storage tanks, steel structures, ships, offshore platforms, dock facilities, bridges, railways, tunnels, and ports. It provides oil resistance and stability, does not pollute oil products, offers excellent electrical conductivity to prevent static accumulation, and has outstanding corrosion resistance.
Salt water resistance test (soak In 3% NaCl salt water for 96h)
No change
Acid resistance (soak in 3% H₂SO₄ liquid for 48h)
No change
Alkali resistance (soak in 5% NaOH liquid for 48h)
No change
Physical Parameters and Construct Specifications for Reference
Mixing ratio
Paint : curing agent=5:1
Life time after mix
2h
Density after mix
About 1.5kg/L
Flashing point
≤60°
Each film thickness
Dry film 150um,wet film1 60um
Theoretical coverage
0.2∽0.35kg/m
Advise coating layer
2 Coats
Re-coat interval
4h ,exceed 7days should be processed by polishing
Surface treatment
The surface of the base must be clean and dry , without loose paint, grease and other dirt , sandblasting or grinding to Sa2 grade.
Construction environment
Construction temperature is 5~40 ℃
Air relative humidity less than 85% .
The substrate surface humidity is 3℃ higher than the dew point
Avoid construction in the rain, snow, fog weather.
Coating method
Brush,Spray, Roller coating
Storage life
1.5 Year
Certificate
Guangdong Huaren Chemical industry Co., Ltd. products has passed ROHS certificate, ensure the products pass Europe standard ; has passed ISO9001:2015 certificate, ensure supply stable quality to our suppliers.
Service Advantages
Customization
Customized various performance coatings,according to the use situation,Design appropriate process and coating application plan.
Large-scale production capacity
The annual output of 30000 tons of coating and 20000 tons of resin has a large production baseof 20000 square meters.
Construction and technical services
Professional construction team, providing design, construction and technical guidance.
Timely delivery service
The company's subsidiary, which specializes in the transportation of hazardous materials, is capable of promptly delivering large-scale key projects.
